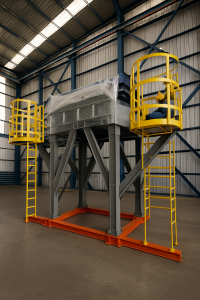

❄️ What Is an Air Cooled Heat Exchanger (ACHE)?
An Air Cooled Heat Exchanger (Fin Fan), also known as a Fin Fan Cooler, is a type of industrial heat exchanger that uses ambient air to cool process fluids. Unlike water-based cooling systems, ACHEs eliminate the need for cooling towers and large volumes of water, making them environmentally friendly and ideal for remote or arid locations.
🏭 Why Choose Air Cooled Heat Exchangers?
✅ Water-Free Operation
Perfect for regions with water scarcity or environmental restrictions.
✅ Lower Maintenance
No scale or corrosion from water reduces downtime and maintenance costs.
✅ Eco-Friendly Cooling
No wastewater or chemical discharge to manage.
🔧 Key Components of an Air Cooled Heat Exchanger
| Component | Function |
|---|---|
| Finned Tubes | Increase surface area for efficient heat transfer |
| Header Box | Distributes fluid evenly into the tube bundle |
| Axial Fans | Force ambient air across the fins |
| Plenum Chamber | Directs airflow and minimizes turbulence |
| Support Structure | Holds and stabilizes the entire unit |
⚙️ How Does It Work?
-
Hot fluid flows into the finned tubes.
-
Fans blow ambient air across the tube surface.
-
Heat is transferred from the process fluid to the air.
-
Cooled fluid exits and returns to the process.
🛠️ Design Considerations
-
Ambient air conditions: temperature, humidity, altitude
-
Process parameters: heat duty, flow rate, temperature range
-
Materials: carbon steel, stainless steel, aluminum, copper-nickel
-
Noise & vibration control
-
Redundancy and accessibility for maintenance
🌍 Why Trust HESCO-Thailand?
HESCO is the only company in Thailand that designs and fabricates Air Cooled Heat Exchangers with full in-house thermal and mechanical design capabilities.
Our solutions comply with:
-
✅ ASME Section VIII
-
✅ API 661
-
✅ TEMA standards
🧩 Trusted by industry leaders such as:
Bangchak, IRPC, ThyssenKrupp, TTCL, and more.
