🔧 What is a Shell & Tube Heat Exchanger?

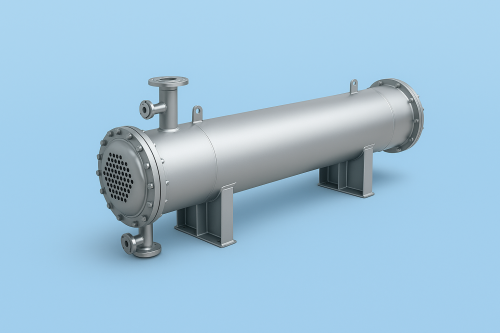

A Shell & Tube Heat Exchanger is one of the most widely used types of heat exchangers in the energy, petrochemical, and refinery industries.
It consists of a bundle of tubes (Tube Bundle) enclosed within a shell, allowing two fluids to exchange heat — one flowing inside the tubes and the other across the shell side.
This design provides excellent heat transfer efficiency, versatility, and durability under high pressure and temperature conditions.
📊 Key Factors to Consider
-
Type of Fluids
First, identify the type, pressure, and temperature of each fluid.
Then, choose materials like Carbon Steel or Stainless Steel for durability. -
Tube Layout & Pass Arrangement
Next, select 1, 2, or 4 passes depending on heat transfer requirements.
Additionally, triangular or square layouts influence cleaning and performance. -
Head Type and Construction
Moreover, choose between Fixed Tube Sheet, Floating Head, or U-Tube designs.
Each configuration suits different thermal expansion and service conditions. -
Maintenance and Accessibility
For frequent cleaning, consider Removable Tube Bundle designs.
In contrast, Fixed Tube Sheet designs are cost-effective for closed systems. -
Design Standards
Finally, ensure compliance with TEMA, ASME, or API standards.
These guarantee product safety, reliability, and international quality.
🧠 Expert Insights from HESCO
The performance of a Shell & Tube Heat Exchanger depends not only on material selection or tube size —
but also on precise Thermal and Mechanical Design tailored to your process conditions.
At HESCO, we are specialists in both thermal and mechanical design, manufacturing, and testing in accordance with TEMA and ASME Section VIII standards.
Our experienced engineering team has delivered numerous units for refineries, petrochemical plants, power plants, and EPC contractors across Thailand and Southeast Asia.
💡 In Summary
Selecting the right Shell & Tube Heat Exchanger is crucial to achieving optimum efficiency, safety, and long-term cost savings in your process operations.
Choosing an experienced and certified manufacturer ensures reliable performance and extended equipment life.
Your trusted partner in the design and fabrication of high-performance Shell & Tube Heat Exchangers.
